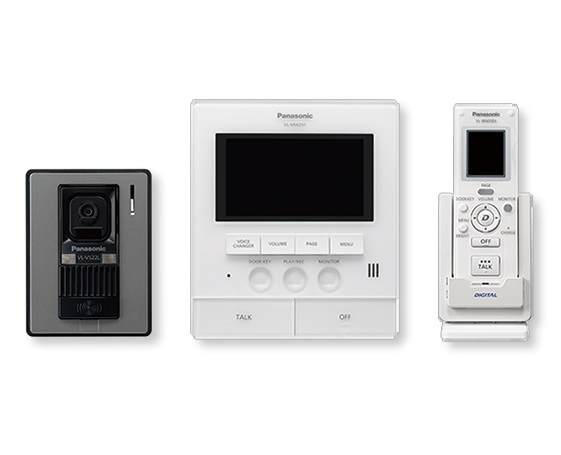

Wireless Video Intercom System

Product Code: VL-SW251


VL-SW251

- Wireless Operation
- 12.7 cm wide Monitor
- Picture Recording
- Electric Lock Release Support
- Night Vision
- Voice Changer
- Intercom Call

Model composition VL-MW251 x 1,
Model composition VL-W605 x 1,
Model composition VL-V522L x 1
Optional Accessories Wireless Monitor VL-W605BX (1 included in VL-SW251)
Door Station VL-V522LSX (1 included in VL-SW251)
Door Station VL-V566BX
Lobby Station VL-V590BX
Repeater VL-FAN1BX
Maximum Connectable Units Wireless Monitor UP to 4 ( 1 included in VL-SW251)
Door Station UP to 2 ( 1 included in VL-SW251)
Monitor UP to 1 ( 1 included in VL-SW251)
Connectable Devices Electric Lock Release Support UP to 2 ( User supplied )
Repeater UP to 2 ( Repeaters are sold separately )
PBX Only Panasonic PBX
Convenience Picture Recording Up to 50 events / 400 images
Picture Recording (8 consecutive recorded images each)
Night Vision Warm white LED lights, Infrared LEDs
Voice Changer Yes
Intercom call Between wireless monitors
Intercom call * Multiple wireless monitors are required
Monitor Power source 100 – 240 V AC, 50/60 Hz
Power consumption Standby: Approx. 0.04 A
Power consumption During operation: Approx. 0.28 A
Dimensions (H x W x D) Approx. 19.0 x 16.5 x 3.8 cm
Mass (weight) Approx. 785 g
Operating environment 0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
Display Approx. 12.7 cm, wide colour display
Talking method Hands-free
Installation method Wall mount (mounting bracket supplied)
Frequency 2.402 GHz – 2.481 GHz
External material Flame retardant ABS resin
Door Station Power source Supplied by the Main Monitor Station
Dimensions (H x W x D) Approx. 13.1 x 9.9 x 3.65 cm
Mass (weight) Approx. 200 g
Operating environment -10 °C to +50 °C, Up to 90 % RH (Relative Humidity) non condensing
Viewing angle Horizontally: Approx. 87°
Viewing angle Vertically: Approx. 66°
Installation method Wall mount (Wall mount base supplied)
Minimum illuminance required 1 lx
Minimum illuminance required (within approx. 50 cm from the camera lens)
Lighting method Warm white LED lights, Infrared LEDs
IP rating (INGRESS PROTECTION) IPX3-rated water resistant
External material Flame retardant ABS resin
Wireless Monitor Power source Ni-MH battery (3.6 V DC / 650 mAh)
Dimensions (H x W x D) Approx. 15.7 x 5.2 x 3.5 cm
Mass (weight) Approx. 175 g (including the battery)
Operating environment 0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
Display Approx.4.572 cm, colour display
Frequency 2.402 GHz – 2.481 GHz
External material ABS resin
Charger Power source AC adaptor: PQLV219BX (100-240 V AC, 50/60 Hz)
Dimensions (H x W x D) Approx. 11.5 x 7.6 x 9.0 cm
Dimensions (H x W x D) Approx. 10.5 x 7.6 x 4.8 cm (using without the stand)
Mass (weight) Approx. 115 g (including the stand)
Operating environment 0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
External material ABS resin
