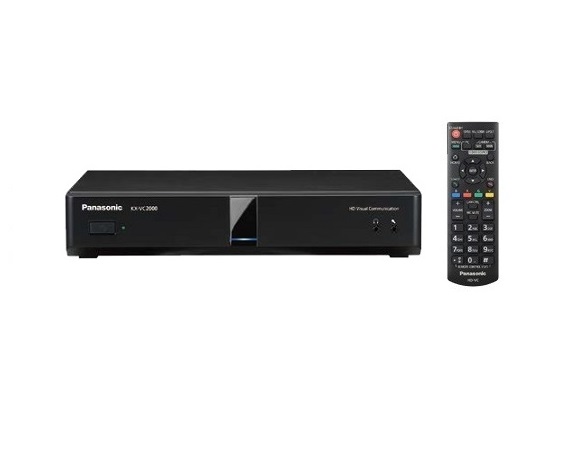

HD Visual Communications System (Multipoint 16-Sites* Connection)
Product Code: KX-VC2000
- Multipoint (1+15) - Video Conferencing System
- Expandable up to (1+23)*
- Full HD 1080p image quality
- Multi-Device
- Camera Control
- USB Memory Recording
- Triple Monitor
- Dual Network
- Interoperability with other manufacturers' videoconference units
* An activation key must be purchased
Panasonic's HD Visual Communications System reduces initial costs while enabling multi-site connection. Its high image and sound quality is another very appealing point. And it allows people to participate in videoconferences from just about anywhere via mobile devices.
- 24-Site Connection
- Multicast
- Dual Network
- Participation in videoconferences using mobile devices
- Meetings can be held while displaying images of your site, the other party's site, and PC data each on one of three monitors.
- Broadband Stereo Full Duplex Audio
- High quality video Full-HD 1080/60p
- The Rate Control function adjusts data traffic based on network congestion
- Remote Camera Control
- Smooth 2-way conversation with broadband stereo and unique Echo Canceller
- Easy-to-understand remote lectures and seminars are conducted at multiple sites
- Connect to a sub-camera to share zoom and still images
- Other brand device compatibility and MCU interoperability
- USB Memory Recording - HDVC enables you to record video image and sound of local and remote sites to USB memory without any expensive equipment
- Low Bandwidth Communication Support
- External Control Interface
- The HDMI3 terminal can be used for a display or recording device
- NAT/FW Traversal
* An activation key must be purchased
| Main Unit | KX-VC2000 | |||
|---|---|---|---|---|
| Communication Method | SIP, H.323 | |||
| Video Compression Method |
H.261 (mainstream only), H.263, H263+, H.263++ (reception only), H.264 High Profile, H.264 Baseline Profile |
|||
| Audio Compression Method |
G.711 μ-law, A-law (3.4 kHz@64 kbps) G.722 (7.0 kHz@64 kbps) G.722.1 (7.0 kHz@32 kbps) G.722.1 Annex C (14.0 kHz@48 kbps/24 kbps) MPEG-4 AAC‑LD Mono (7.0 kHz@32 kbps, 14.0 kHz@64 kbps, 22.0 kHz@96 kbps) MPEG-4 AAC‑LD Stereo (14.0 kHz@64 kbps, 22.0 kHz@96 kbps) |
|||
| No. of Channels |
G.711/G.722/G.722.1/G.722.1 Annex C: 1 MPEG-4 AAC-LD Mono: 1/ MPEG-4 AAC-LD Stereo: 2 |
|||
| Remote Camera Control | H.224, H.281 (Zoom/Pan/Tilt/Preset) | |||
| Dual Stream | Method | H.239 (H.323), BFCP (SIP) | ||
| Multi-Monitor | 3 displays | |||
| No. of Applicable Resolution Frames | Main: Max. 1080p 30 frames/second, Sub: Max. 1080p 30 frames/second | |||
| Encryption | SRTP (AES 128 bit), H.235 (AES 128 bit) | |||
| Other | H.460 | |||
| Communication Bandwidth | 256 kbps to 24 Mbps | |||
| Video | Compatible Resolutions*1 |
176 x 144p, 352 x 240p, 352 x 288p, 512 x 288p, 640 x 480p, 704 x 480p, 704 x 576p, 768 x 432p, 800 x 600p, 1024 x 768p, 1280 x 720p, 1280 x 768p, 1280 x 800p, 1920 x 1080p |
||
| No. of Frames | Max. 60 frames/second (for H.264 1080p) | |||
| Screen Display | Full-screen, Picture in Picture, Picture with Picture, Side by Side | |||
| Audio |
Echo canceller, Auto gain control, Stationary noise reduction, Lip synch, Equalizer, Mic mute |
|||

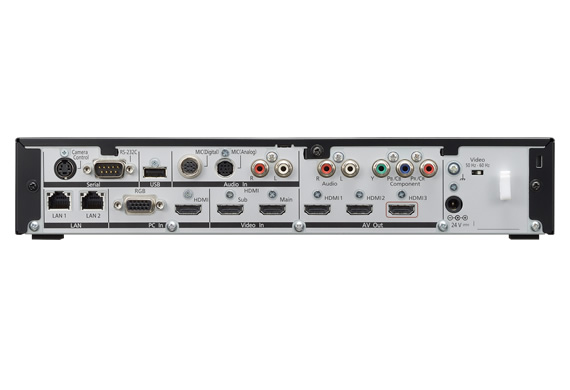

| I/O Terminals | Video Input | Camera*2 |
HDMI main x 1, HDMI sub x 1 Input resolution: 1280 x 720p, 1920 x 1080i, 1920 x 1080p |
|
| PC |
RGB x 1(Mini D-sub 15pin), HDMI x 1*2 Input resolution: VGA, SVGA, XGA, HD, WXGA, SXGA, FWXGA, WXGA+, WXGA++, UXGA, WSXGA+, Full-HD |
|||
| Video Output |
HDMI x 2, HDMI x 1 (For own site/recording video), RCA x 1 (Component) Supported output resolutions: 1920 x 1080i, 1920 x 1080p |
|||
| Audio Input |
Digital Boundary Microphone x 1 (KX-VCA001) Max. 4, Analogue Boundary Microphone x 1 (KX-VCA002) Max. 1, HDMI, Stereo mini-plug*3 x 1 (ø3.5 mm), RCA (Stereo) x 1 |
|||
| Audio Output | HDMI*4, Stereo mini-plug*3 x 1 (ø3.5 mm), RCA x 1 (Stereo) | |||
| Network | RJ45 x 2 (1000BASE-T/100BASE-TX Full Duplex) | |||
| External Control | RS-232C x 1 (Also used for maintenance) | |||
| Others | USB 2.0 x 1, Camera Control Terminal x 1 (Not used) | |||
| No. of Simultaneous Connection Sites | 16 (Expandable up to 24*5) | |||
| Content Sharing | PC (RGB/HDMI), Sub-camera (HDMI sub) | |||
| USB Memory |
Updating Software Import: Contact List / Profile / Configuration Data / Encryption Data / Start-up Screen / Delivery Tree List Export: Contact List / Profile / Configuration Data / Encryption Data / Delivery Tree List |
|||
| Network Protocol |
TCP/IPv4, TCP/IPv6*6, UDP/IPv4, UDP/IPv6*6, DHCP, DNS, HTTP, HTTPS, TELNET, NTP |
|||
| Network Functions |
Packet resending (ARQ), Forward Error Correction (FEC), Adaptive Rate Control (ARC), Reorder, Packet Shaping, Arbitrary Port Setting, NAT Compatibility, Encryption, IP Precedence/DiffServ Support |
|||
| External Control | Via Web Browser, Control by HTTP CGI, TELNET, RS-232C | |||
| Connection Modes | IP mode, NAT Traversal Service mode, IP / NAT Traversal Service mode | |||
| Dimensions (width x depth x height) | Approx. 320 mm x approx. 270 mm x approx. 61 mm (Excluding projecting parts) | |||
| Weight | Approx. 3.4 kg | |||
| Power Input | AC 100-240 V, -1.0 A, 50/60 Hz | |||
| Power Consumption | Maximum: approx. 73 W, Standby: 0.6 W | |||
| DC Power Input | DC 24 V, 3.0 A | |||
| Operating Temperature | 0 °C to 40 °C | |||
| Operating Humidity | 10 % to 90 % (non-condensing) | |||
| Boundary Microphone (sold separately) | KX-VCA001 | KX-VCA002 | ||
| Maximum Pickup Range | Approx. 4 m (radius) | Approx. 2 m (radius) | ||
| Pickup Method | Stereo / Monaural *7 | Stereo / Monaural *8 | ||
| Microphone Unit |
Unidirectional ECM microphone parts x 4 |
Unidirectional ECM microphone parts x 2 |
||
| Number of Connections | Maximum 4 microphones | Maximum 1 microphone | ||
| Maximum Input Sound Pressure | 110 dBspl | |||
| Number of Terminals for Microphone Connection | 2 | 1 | ||
| Dimensions | Approx. 120 mm (diameter) x 25 mm | Approx. 75 mm (diameter) x 32 mm | ||
| Cable Length | Approx. 8.5 m | Approx. 7 m | ||
| Power Input | Supplied from main unit via proprietary cable | |||
| Weight | Approx. 280 g | Approx. 80 g | ||
| Operating Temperature | 0 °C to 40 °C | |||
| Operating Humidity | 10 % to 90 % (non-condensing) | |||
*When connected to a different brand's device or MCU (Multi-point Control Unit), connection conditions vary depending on the specifications of their devices or MCUs.
*1 Varies due to the settings of the HDVC System and the network condition.
*2 HDCP is not supported.
*3 Dedicated 3-pole stereo mini-plug.
*4 Audio cannot be output simultaneously to HDMI1/HDMI2.
*5 An activation key must be purchased.
*6 Some functions are not supported by IPv6.
*7 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural:
• The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HDVC Unit using SIP.
• The MIC position is set manually to "Center stereo", or the MIC position is set automatically with the KX-VCA001 connected to the unit without the KX-VCA002 connected.
*8 If either of the following conditions is met, the output sent to the other party will be stereo; otherwise, monaural:
• The bandwidth is higher than approximately 1.8 Mbps in a 2-party videoconference call with the HDVC Unit using SIP.
• KX-VCA001 and KX-VCA002 are not being used together.
• Specification is subject to change without notice.
• Dimensions and weights are approximate.
