Single Pair Protection Plug Without Test Access (IPM)

Product Code: 6905 2 604-01


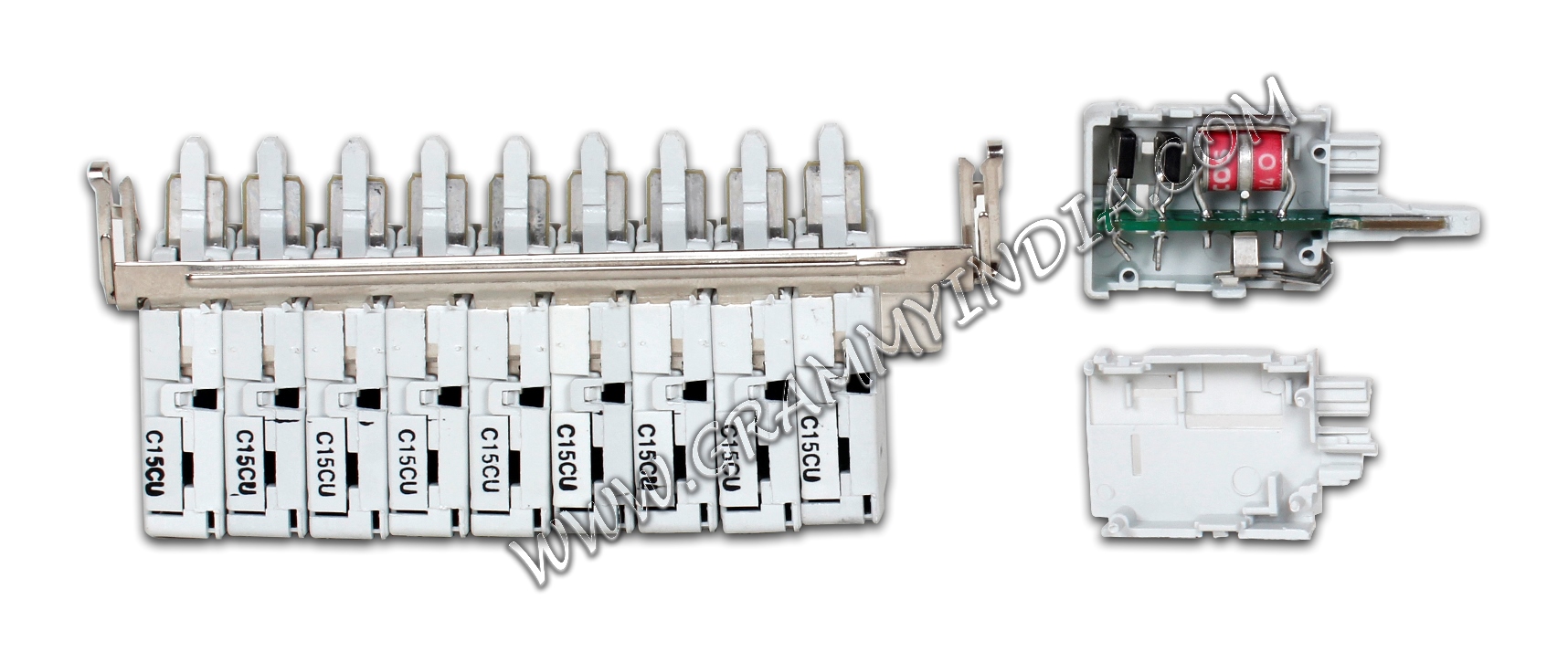

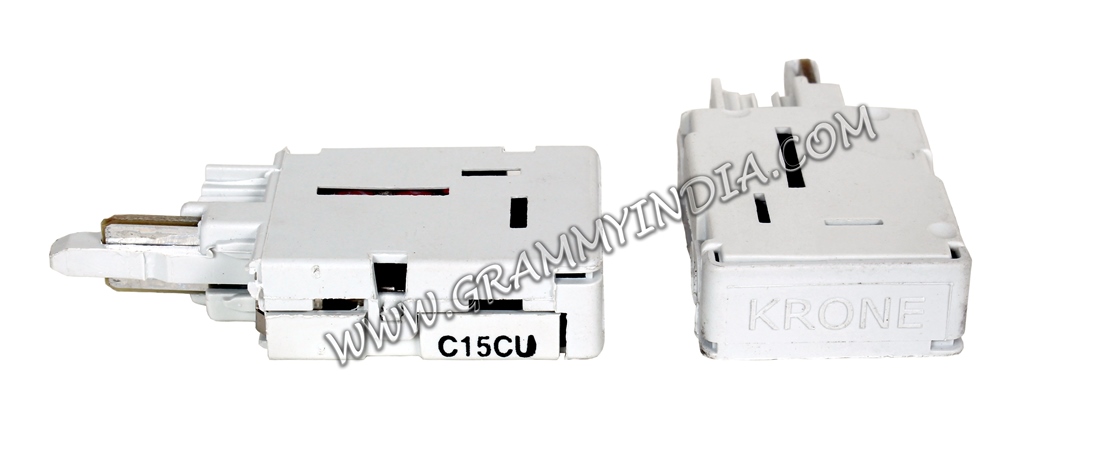

Part No. : 6905 2 604-01                                                                                                                                                                                This provides both voltage and current protection for single pair on line side. The primary protection is built in by 3 pole GD Tube. The secondary over current protection is provided by Positive Thermal Coefficient.

Features:
• Mounts on Disconnection / Switching module
• Simple plug in operation along with Earth bar
• To protect Switching Equipment of Central office /DLC etc
• Overvoltage protection using 3 Pole GD Tube
• Overcurrent protection using PTC resistors
• Optional variants with test access contacts or overcurrent trip indicator
• Meets ITU recommendations
Specifications :

Max. Operating Voltage (a/b-e, a-b) ................................................................................180 V (volts)
Normal DC spark-over voltage .................................................................................180~300 V (volts)
Impulse spark-over voltage @1kV/ micro sec .................................................................< 900 V (volts)
Nominal arrestor surge current (8/20 micro sec) ............................................................................5kA
Nominal arrestor alternating discharge current....................................................................... 5A (rms)
Fail safe response time......................................................................................................< 5 seconds
Max. Operating current (a-a’, b-b’)@25 c ............................................................. 120 mA (milli amps)
Rated line resistance (a-a’. b-b’)@145mA, 25c....................................................................6~25 ohms
Resistance balance ...............................................................................................................< 1 ohms
Max. switching current of PTC @230V rms............................................................................ 3A (rms)
Max. switching time PTC @1A (rms).................................................................................. 2.5 seconds
Insulation Resistance .................................................................................................. >1000 M ohms

Environmental :
Temperature operation ................................................................................................- 5 C to +60 C
Relative humidity .......................................................................95%, no water condensation, no ice

Materials :
Plastics ........................................................................................................................................ PBT
Plastics flammability class ......................................................................................................UL 94 V0
